What are Fiberglass Composites?

Any type of material combined together to have greater protperties can be consider composite materials. In this article we try to explain fiberglass composites more in details.

Different GF reinforcements such as long longitudinal, woven mat, chopped fiber, and chopped mat is generated to improve the mechanical and tribological characteristics of the composites. Composite parts are determined by the fibers deposited or laminated in the matrix during composite preparation.

Polyester matrix-based composites have been extensively employed in marine applications; water absorption was a significant characteristic in the degradation of polymer composites in the marine area. Epoxy resins have been extensively used for the applications above because of their excellent chemical/corrosion resistance and minimal shrinkage during curing.

The waste composites are crushed or milled into a finer regrind utilizing mechanical processing processes. The regrind is divided into three recyclate grades. These automatic recycling byproducts may subsequently be employed as filler or reinforcement in new composite manufacturer products, or they can be transported more readily to alternative treatment facilities.

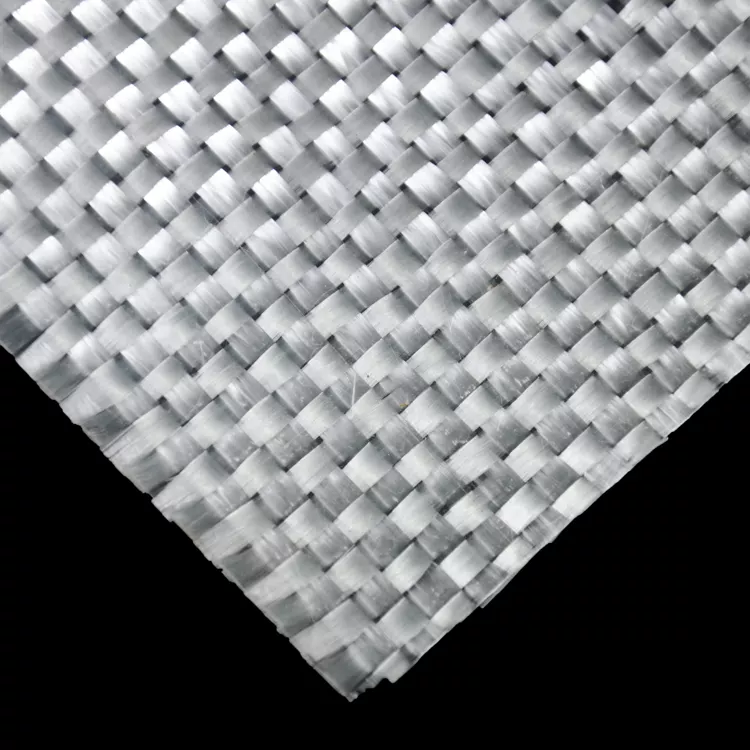

Woven E-glass
Woven E-glass

Several variables impacted the energy dissipation of FRP composites, including fiber volume, fiber orientation, matrix material, temperature, moisture, and others such as lamina thickness and composite thickness. The dynamic stability of polymer matrix composites, such as the storage modulus and damping factors, was critical to investigate at low and high temperatures. The composites were exposed to various situations in tribological applications, such as sliding, rubbing, and rolling against other materials or themselves.

Composites have grown in popularity because of their lightweight, superior mechanical qualities and beauty. Approximately 90% of all Fibre-Reinforced Polymers (FRP) are made of glass fibers and a thermoset resin. In 2022, the European manufacturing volume of Glass Fibre Reinforced Polymers was expected to be over 1 megatonne again. Regarding the data we think composites has more potential to provide better material properties than competitors for cheaper costs.

What are the many types and forms of fiberglass, and how are they used?

A fiberglass is a form of fiber-reinforced plastic in which glass fiber serves as the reinforcement. Because of this, fiberglass is also known as glass fiber-reinforced plastic or glass-reinforced plastic. Glass fibers may be made from several kinds of glass. The glass fiber is flattened into a sheet and then randomly placed or woven into a cloth. Fiberglass is lightweight, robust, and less brittle than other materials.

One of the most enticing aspects of fiberglass is its ability to be molded into various forms. This explains why fiberglass is used extensively in building, civil engineering, commercial and residential items, aviation, roofing, and sports equipment. Rene Ferchault de Reaumur, a French scientist, developed glass fiber around the end of the 18th century, but it was mostly ignored. A German glassblower created a piece of fabric by weaving silk strands in one direction and glass fibers in the other.

At the 1893 Chicago World's Fair, Edward D. Libbey of the Libbey Glass fiber composite Company displayed a garment of such fabric. The outfit broke when folded and weighed 13.5 pounds for demonstrative purposes only. Aside from clothing, glass fibers had the potential for various purposes. However, they were not flexible at the time. These glass fibers could also not be mass-produced.

Fiberglass functions similarly to conventional glass in that it does not absorb moisture:

  • It neither molds nor mildews.

  • It does not conduct electricity.

  • It never rusts, shrinks, expands, or burns.

Fiberglass insulated board GRP/FRP Flat Sheet Plastic Roof/Wall Panel
Fiberglass insulated board GRP/FRP Flat Sheet Plastic Roof/Wall Panel

Fiber Reinforced Polymer (FRP) materials are used to create goods like rotor blades for windmills and helicopters, components for commercial and military aircraft, automotive parts, and even trucks, some decades and many discoveries later.

Fiberglass Types

Fiberglass may be roughly classified into many types, each of which is utilized for a specific application:

  • A-glass: Alkali glass is another name for it. A-glass fiber is chemically resistant and has some characteristics of window glass. It is utilized to manufacturing process equipment outside of the United States.

  • C-glass: Chemical glass is another name for C-glass. C-glass is very resistant to chemical attacks.

  • E-glass: E-glass is also known as electrical glass. E-glass is an excellent electrical insulator.

  • AE-glass: AE-glass stands for alkali-resistant glass.

  • S-glass: S-glass is another name for structural glass. The mechanical characteristics of S-glass are having high tensile strength.

What are the Attributes of Fiberglass?

  • High tensile strength: Tensile strength is relatively high: When it comes to reaching a buckling threshold in thermal load-bearing constructions, fiberglass rebars are just as robust as steel. When utilized in hostile settings, they retain their integrity and do not rust.

Load-bearing fiberglass rebar exhibited a more muscular longitudinal tensile strength and a lower module of elasticity and density than steel in research on FRP rebar used in construction to reduce thermal bridging.

  • Electrical insulation: Fiberglass is an excellent electrical insulator.

  • Non-combustible: It is not flammable. It does not sustain or spread a flame. It does not produce smoke or hazardous substances when exposed to heat.

  • Dimensional stability: Because of its low linear expansion coefficient, fiberglass does not warp, bend, or distort.

  • Corrosion Resistence: Fiberglass does not decay because it retains its integrity and is unaffected by rats and insects.

  • Heat conductivity: Because of its low thermal conductivity, fiberglass is widely used in architecture and construction.

Fiberglass Applications in Industry

Fiberglass is long-lasting, safe, and provides excellent thermal insulation. It not only offers greater insulation but fiberglass is frequently employed in the following industries:

  • Fabrication: Fiberglass grating features an integrated grit surface for slide resistance in wet regions or areas with hydraulic fluids or oils.

  • Metals and mining: Fiberglass is used to construct grating, particularly in regions subject to chemical corrosion.

  • Energy: Because of its non-conductive qualities, fiberglass is used in many sectors of the power generation industry, including tank farms, scrubbers, and others. Fiberglass is widely utilized in the automotive industry to manufacture car and body kits and components.

  • Aircraft & Defense: Fiberglass is used to make components for the military and commercial aerospace industries, such as test equipment, ducting, and enclosures.

  • Nautical: Saline water is not corrupted, rusted, or affected by fiberglass.

Fiberglass supports rocks in fountains and aquariums to aid circulation and filtration from under the rocks. Fiberglass grating shields spray heads and lights from damage in giant public fountains. This also aids in the prevention of individuals drowning in the fountains.

Fiberglass possesses chemical corrosion resistance and is utilized in various applications because of its corrosion resistance and anti-slip qualities.

How do polymer composite materials behave tribologically?

Natural fibers' availability and simplicity of manufacture have enticed researchers to investigate their practicality as reinforcement and the degree to which they meet the requisite standards in tribological applications. However, little information is available in the literature on the tribological performance of natural fiber-reinforced composite materials. As a result, this bibliographic study aims to illustrate the tribological behavior of natural fiber-reinforced composites and gain information about their suitability for diverse applications where tribology is essential.

E-glass roll
E-glass roll

Natural carbon fiber manufacturer-reinforced composites, focusing on fiber type, matrix polymers, fiber treatment, and test parameters are tried to be summarized in this article. The findings reveal that composites reinforced with natural fibers have improved tribological characteristics and are similar to conventional fibers. Furthermore, fiber treatment and orientation are two significant elements that might alter tribological qualities, with treated and usually orientated fibers exhibiting improved friction and wear behavior.

How do GFRP matrix composites perform in terms of thermal properties?

Compared to conventional building materials, these composite materials offer clear benefits such as high strength, low density, corrosion resistance, and simplicity of processing. There are several ways for forming parts, such as pultrusion and resin transfer molding, which process into the desired shape directly via raw material; meanwhile, GFRP, as a polymer composite, exhibits numerous specific physical and mechanical characteristics, one of which is the thermal property.

According to relevant researches made we try to summarize the thermal properties. First, a dynamic thermomechanical analysis experiment is performed to determine the glass transition temperature of the object GFRP, and the experimental data is used to compute the curve of bending elastic modulus with temperature.

Then, using DMA experiments and other literature, compute and estimate the values of other various thermal parameters and conduct numerical simulation under two conditions: heat transfer process of GFRP panel in which the panel would be heated directly on the surface above Tg, and hot processing under this temperature field; physical and mechanical performance of GFRP panel under fire condition.

The matrix material, polymer, performs very well when heated, endowing these composite materials with promising hot processing properties and low fire resistance.

GFRP waste Recycling

As we all know the recycling is one of the biggest challenges of composite materials. Due to its complex structure recycling is not as easy as commonly used materials like metals and plastics. The act of transforming waste composite into useful material or returning the material to a previous stage in the cyclic process is known as recycling. It is demonstrated many times that the original materials cannot be retrieved using standard procedures owing to the nature of thermoset composites. Recent changes in waste management regulations and the expected future orientations for EOL composites indicate that recycling pathways must be created for composite materials to have a market presence.

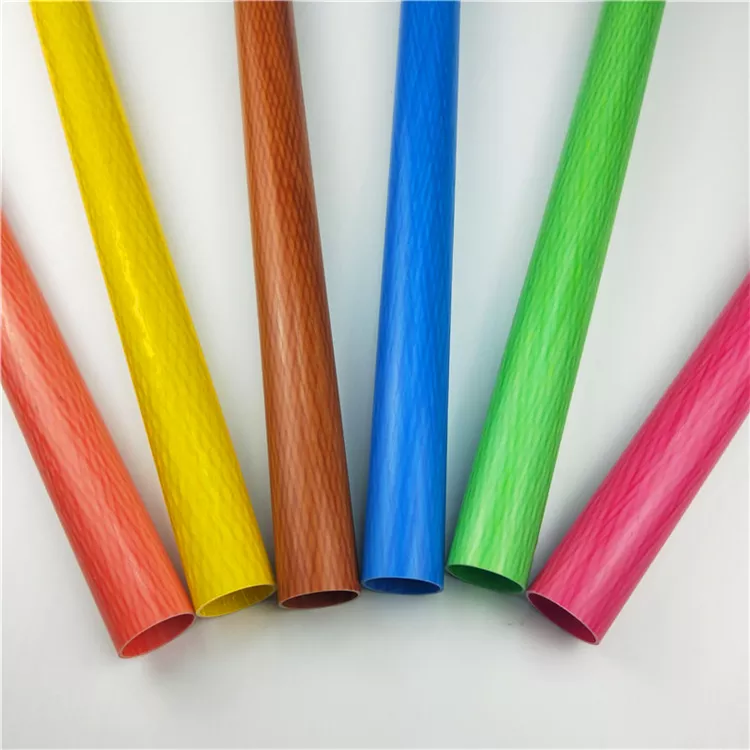

Fiberglass pultrusion tubes
Fiberglass pultrusion tubes

Methods of Recycling

According to researchers, there are two types of thermoset composite recycling processes: those that use mechanical comminution techniques to reduce the size of the waste composite to produce recyclates and those that use thermal methods to break down waste composites into recoverable materials or energy. We try to cover the thermal processing choices.

How Do You Recover Fibre?

Fiber recovery entails placing discarded composites in a furnace for a certain period. This technique destroys the resin, leaving only deteriorated, transparent glass fibers. The remaining fibers may then be utilized in GFRPs with lesser mechanical characteristics. Because of the decrease in length and orientation throughout the process, the mechanical parts of the glass fibers are lowered. Researchers found a reduction in mechanical characteristics with increasing temperature for glass carbon fiber manufacturers using the fluidized bed technique. These strength decreases were identical to those seen in Jenkins' experiment. To optimize fiber recovery, a constant, known supply of clean, uncontaminated waste composites must be provided, e.g., recycling E- and S-glass together would hinder the re-spinning of the melt.

The waste composites are crushed or milled into a finer regrind utilizing mechanical processing processes. The regrind is divided into three recyclate grades. These automatic recycling byproducts may subsequently be employed as filler or reinforcement in new composite manufacturer products, or they can be transported more readily to alternative treatment facilities.

There are two main thermal processing techniques: carbon fiber manufacturer recovery and incineration with energy recovery. The waste composite is subjected to high temperatures for specific periods to thoroughly dissolve the resin, resulting in clean, usable recovered glass fibers. Incineration with energy recovery entails incinerating waste composite to recover embodied energy, such as waste composite being utilized as an alternative fuel inside a cement kiln.

Reduced Composite Size

Thermal recycling techniques need to reduce waste GFRP into smaller, more manageable pieces for processing. A wet saw and a jigsaw were used to cut the GFRP waste into manageable pieces for processing. Both techniques' costs and energy use were documented and compared.

According to the tests which were carried out to assess the water cost needed during the wet saw operation. GFRP waste was chopped and collected from the overflow container; the quantity of water was then measured, and the price of that water was determined.

Scaling Implications Discussion Scaling the process of energy recovery to an industrial level requires a few critical considerations for the approach to be practical. Large waste composites (such as wind turbine blades) will need to be reduced in size to be transported. This first size reduction might be accomplished using a jigsaw. Because this size reduction method is limited to the cutting length of the blade, composites thicker than 50mm will need a separate procedure.

The waste GFRP will subsequently be delivered to facilities that may need additional size reduction. Because the aesthetics of the garbage are no longer relevant, this second step of removal may be carried out using a crusher. Scaling the fiber recovery process to an industrial level would need the first step described above (initial size reduction and transport). The size of the waste composite when it enters the furnace is critical. The length and orientation of the fibers in the component will impact the mechanical characteristics of the recovered fibers (2016). The temperature at which the resin decomposes will also affect the mechanical parts of the fibers.
